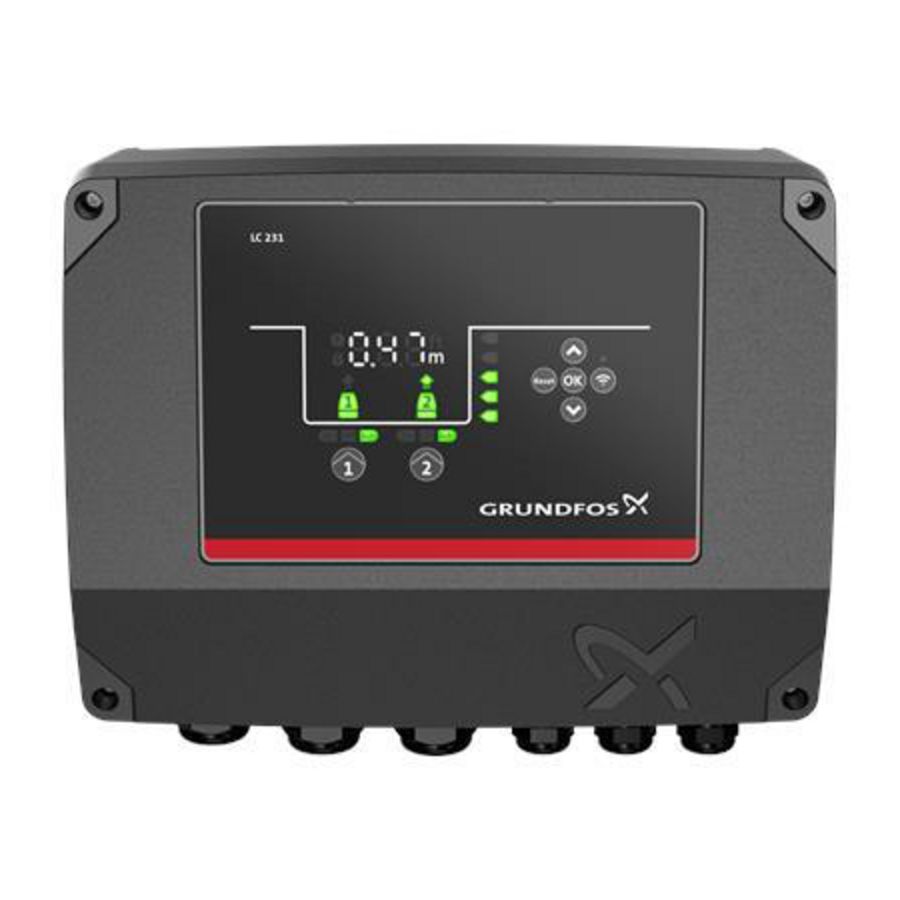

Pompregelaar LC 231 2x 1-9 DOL 3x460 PI CE GRUNDFOS
4698215
MFG #: 99369650
€1.335,00
/ 1.00
- 5G-netwerk standaard: Nee
- Aansluitspanning: 110 - 240 V
- Aantal fasen: 1
- Aantal pompen: 2 - 2
- Aardverbinding: Beschermende aarding
- Beschermingsgraad (IP): IP54
- Bluetooth-netwerk standaard: Ja

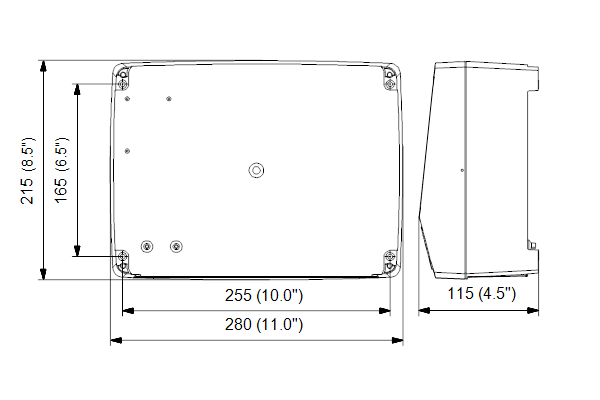

- Breedte behuizing: 280 mm
- Communicatie: Ingebouwd en voorbereid
- Frequentie: 50/60 Hz
- Geschikt voor vloermontage: Nee
- Geschikt voor wandmontage: Ja
- Hoogte behuizing: 215 mm
- Interface pulsbreedtemodulatie (PWM): Nee
- Interface pulsteller: Ja
- Interface signaal 0-10 V / 2-10 V: Ja
- Interface signaal 0-20 mA / 4-20 mA: Ja
- Interface signaal PT100 / PT1000 / PTC: Ja
- Materiaal behuizing: Kunststof
- Merk: GRUNDFOS
- Met communicatie-interface RS-232: Nee
- Met communicatie-interface RS-485: Ja
- Nom. stroom: 1 - 9 A
- Omgevingstemperatuur: -25 - 40 °C
- Ondersteunt protocol voor BACnet IP: Ja
- Ondersteunt protocol voor BACnet MS / TP: Ja
- Ondersteunt protocol voor CAN / CANOpen: Nee
- Ondersteunt protocol voor EtherNet/IP: Ja
- Ondersteunt protocol voor KNX: Nee
- Ondersteunt protocol voor LIN Bus: Nee
- Ondersteunt protocol voor LON / LONWorks: Nee
- Ondersteunt protocol voor Modbus RTU: Ja
- Ondersteunt protocol voor Modbus TCP: Ja
- Ondersteunt protocol voor PROFIBUS: Ja
- Ondersteunt protocol voor PROFINET IO: Ja
- Potentiaalvrij schakelcontact: Ja
- Radiostandaard WLAN 802.11: Nee
- Totale breedte: 280 mm
- Totale diepte: 115 mm
- Totale hoogte: 215 mm
- Type motorstarter: Directstarter
- Type stroom: AC
- Type: Toebehoren
- Serie: Toebehoren en onderdelen
